Will Self-Tapping Screws Hold in Aluminum?
Using self-tapping screws in aluminum saves time — but only if the right type and method are applied.
In 2025, manufacturers and DIY builders alike ask: will self-tapping screws securely hold in aluminum? The short answer is yes — but with critical conditions.
Aluminum’s softness allows easy penetration, yet improper pairing with screws leads to stripping, loosening, and galvanic corrosion. Below, we explain how to do it right.
Table of Contents
- Can You Use Self-Tapping Screws on Aluminum?
- What Is the Maximum Metal Thickness for Self-Tapping Screws?
- Can You Screw into an Aluminum Patio?
- Is It OK to Use Stainless Screws in Aluminum?
- Best Practices for Fastening Aluminum with Self-Tapping Screws
- FAQs
- Conclusion
Can You Use Self-Tapping Screws on Aluminum?
Yes, self-tapping screws work in aluminum when properly selected.
Self-tapping screws can form threads in aluminum, but the hole diameter, screw tip, and thread type must match the aluminum’s hardness and thickness.
Key Selection Tips
| Screw Type | Use Case |
|---|---|
| Self-tapping (pointed) | Thin sheet aluminum, soft extrusions |
| Self-drilling (tek tip) | Thicker aluminum (up to 5mm) |
| Thread-forming (non-cutting) | For vibration-resistant joints |
Prime supplies high-performance self-tapping screws with sharp threads and corrosion-resistant coatings, ideal for use in structural aluminum or custom enclosures.
What Is the Maximum Metal Thickness for Self-Tapping Screws?
Screw penetration depends on tip type and metal hardness.
Generally, self-drilling screws can handle aluminum up to 5mm thick, while traditional self-tappers should be used below 2.5mm.
Drilling Capacity Guidelines
| Screw Type | Max Aluminum Thickness | Pilot Hole Needed |
|---|---|---|
| Type AB (pointed) | 2.0–2.5 mm | Yes |
| Type B (blunt tip) | 1.5–2.0 mm | Yes |
| Tek #2/#3 Tip | Up to 4.0–5.0 mm | No |
Drilling performance also depends on RPM, torque control, and surface finish. Contact Prime for load-tested fasteners by application.

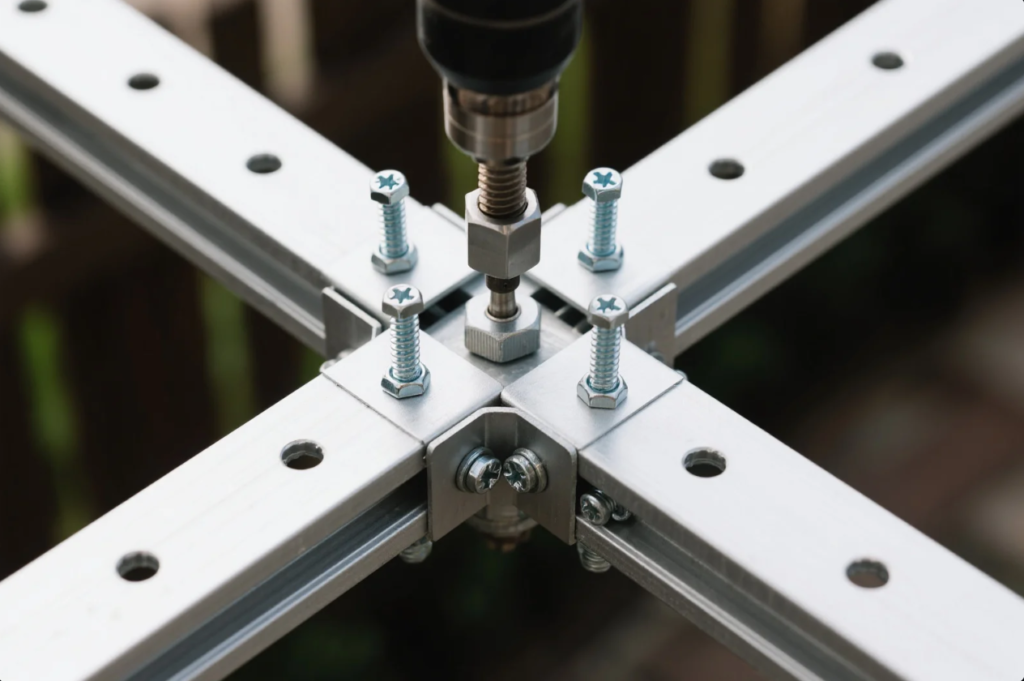

Can You Screw into an Aluminum Patio?
Yes, aluminum patio structures are perfect for self-tapping fasteners — with care.
Self-tapping screws are commonly used to assemble or repair aluminum patio frames, fencing, handrails, and siding.
Things to Consider
- Use pilot holes to reduce cracking in extruded aluminum.
- Avoid overtightening to prevent thread stripping.
- Seal the joint with caulking or rubber grommets for weatherproofing.
- Use compatible metals to avoid galvanic corrosion (stainless is best).
Prime supplies stainless steel self-tappers with rubber washers, ideal for patio and outdoor aluminum builds.
Is It OK to Use Stainless Screws in Aluminum?
Yes — with correct installation and corrosion control.
Stainless steel screws can be safely used with aluminum, though they introduce a minor risk of galvanic corrosion in wet environments.
Galvanic Compatibility
| Material Pair | Galvanic Risk | Mitigation Method |
|---|---|---|
| Stainless + Aluminum | Low-Moderate | Use isolators, sealants |
| Zinc-plated + Aluminum | High | Avoid or separate with gaskets |
| Anodized + Aluminum | Minimal | Safe |
Prime offers fasteners with nylon washers, corrosion inhibitors, and dual-metal insulation, eliminating risk of thread damage or oxidation over time.
Best Practices for Fastening Aluminum with Self-Tapping Screws
To ensure secure holds and long-term durability when using self-tapping screws in aluminum, follow these expert practices:
Installation Guidelines
- Drill Proper Pilot Holes: Typically 80% of the screw’s minor diameter.
- Use Correct Torque: Avoid overtightening — strip resistance is lower in aluminum.
- Apply Lubricant or Anti-Seize: Prevents galling and thread wear.
- Install in Moderate Speeds: 1500–2500 RPM for Tek screws.
- Avoid Cross-Threading: Align screws perpendicular to the surface.
Environmental Considerations
- For outdoor or coastal applications, use marine-grade 316 stainless.
- Avoid mixing fasteners with galvanized or bare steel.
- Apply a sealant or gasket if moisture is present.
Prime’s fastener engineers recommend stainless self-drilling screws with EPDM washers for aluminum enclosures, construction, and automotive trim. We ship globally — get a quote here.
FAQs
Q1: Can I use self-tapping screws without a drill bit in aluminum?
A1: Only if using Tek-style screws; traditional types need pilot holes.
Q2: What happens if I overtighten screws in aluminum?
A2: Threads may strip, reducing pull-out strength and joint life.
Q3: Should I use washers with self-tapping screws in aluminum?
A3: Yes. Rubber or nylon washers help seal and reduce metal-to-metal contact.
Q4: What’s better: stainless or coated steel screws for aluminum?
A4: Stainless is always safer. Coated steel risks corrosion over time.
Q5: Does Prime offer bulk custom-labeled screw kits?
A5: Yes. We supply custom-packed kits with your logo and technical specs.
Conclusion
Self-tapping screws can hold securely in aluminum — but only with the right fastener, drilling method, and corrosion controls. For certified fasteners, expert advice, and quick delivery, trust Prime. Contact our engineering team at [email protected] for a free quote and project recommendation.
